Rings · Rollers

ISO

Quality certification from TÜV Rheinland - ISO 9001 / ISO 45001 / ISO 14001

Quality

PPAP / APQP support

Traceability

Starting from raw Material to finished product, every step is tracable by unique id.

Packaging

Custom packaging and laser marking as per customer requirements.

Rings

Rings

Inner & Outer Rings for Precision Bearings

Rollers

Rollers

Cylindrical, Taper & Spherical Rollers

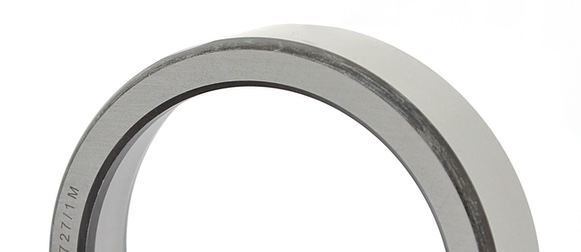

Rings

Hardened bearing rings manufactured with tight roundness, waviness, and surface finish control. Available in through‑hardened and case‑hardened steels, with options for raceway profiling, crowning, and special geometries.

  • OD Range : 50 mm – 800 mm
  • Precision Class : P0, P6, P5, P4 & P2
  • Heat Treatment : Through‑/Case‑hardening
  • Materials : 100Cr6, 100CrMnSi6, SAE 52100, E 3310, SAE 8620, EN 36 C, EN 353, SS 440 C and M50

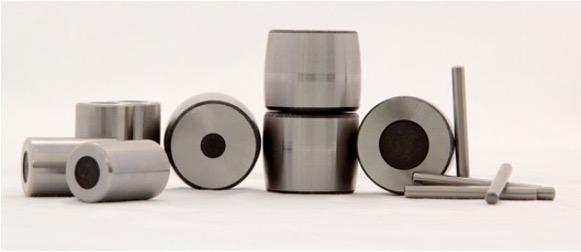

Rollers

High‑precision rollers with controlled crown and profile for optimal load distribution. Supplied matched and sorted for low dispersion in diameter and length.

  • Diameter : 25 mm – 100 mm
  • Length : up to 200 mm
  • Profile : log, linear, custom
  • Materials : 100Cr6, 100CrMnSi6, SAE 52100, E 3310, SAE 8620, EN 36 C, EN 353, SS 440 C and M50
